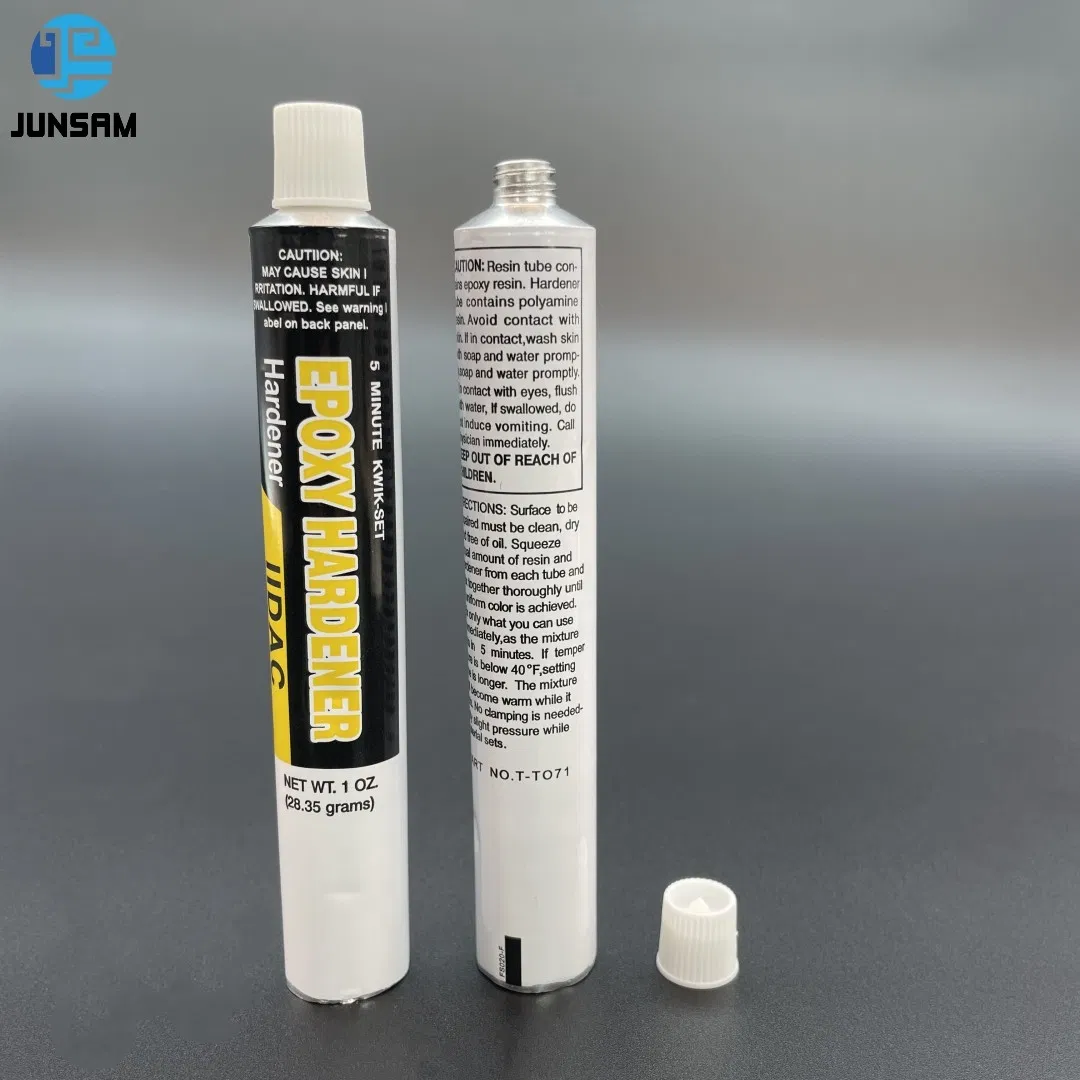

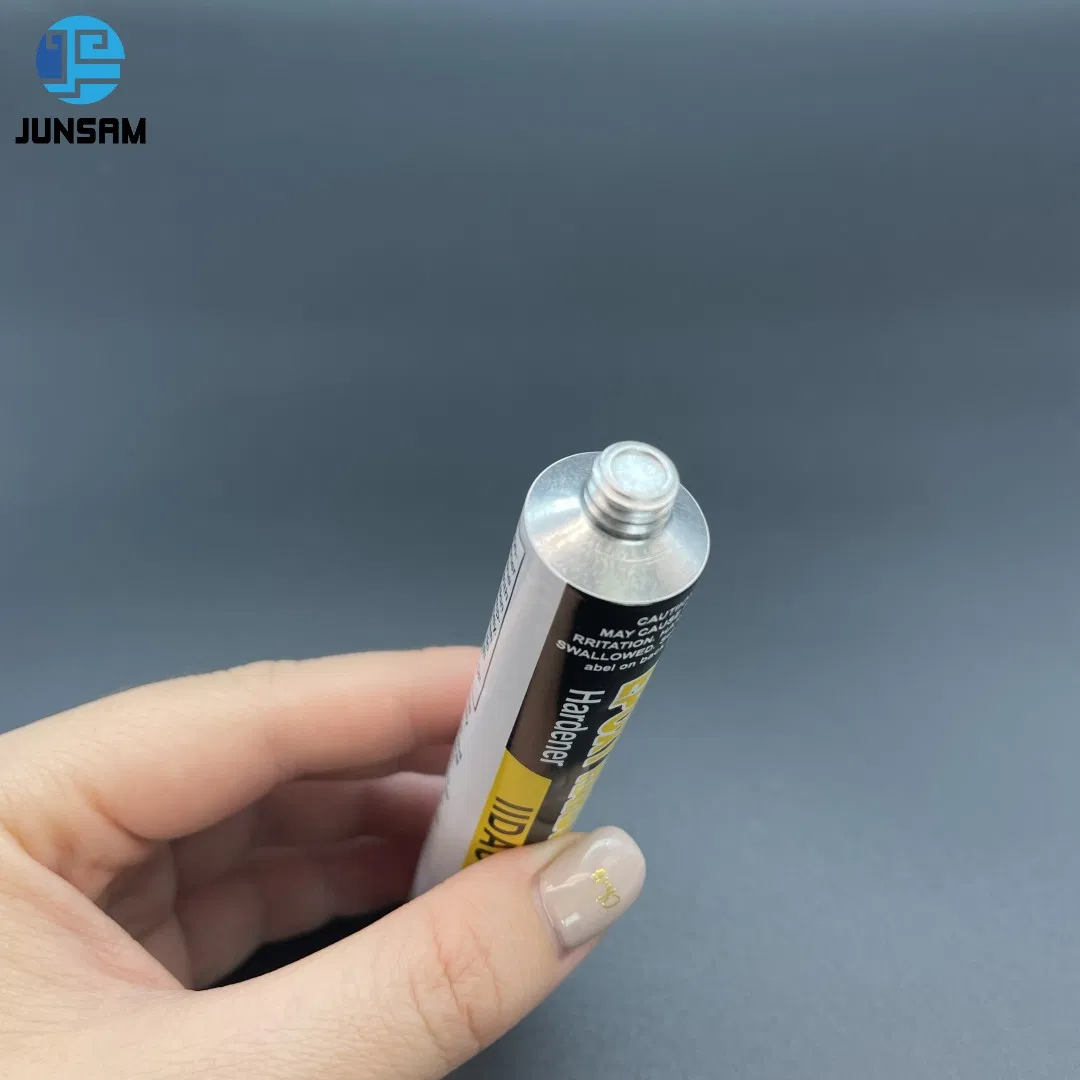

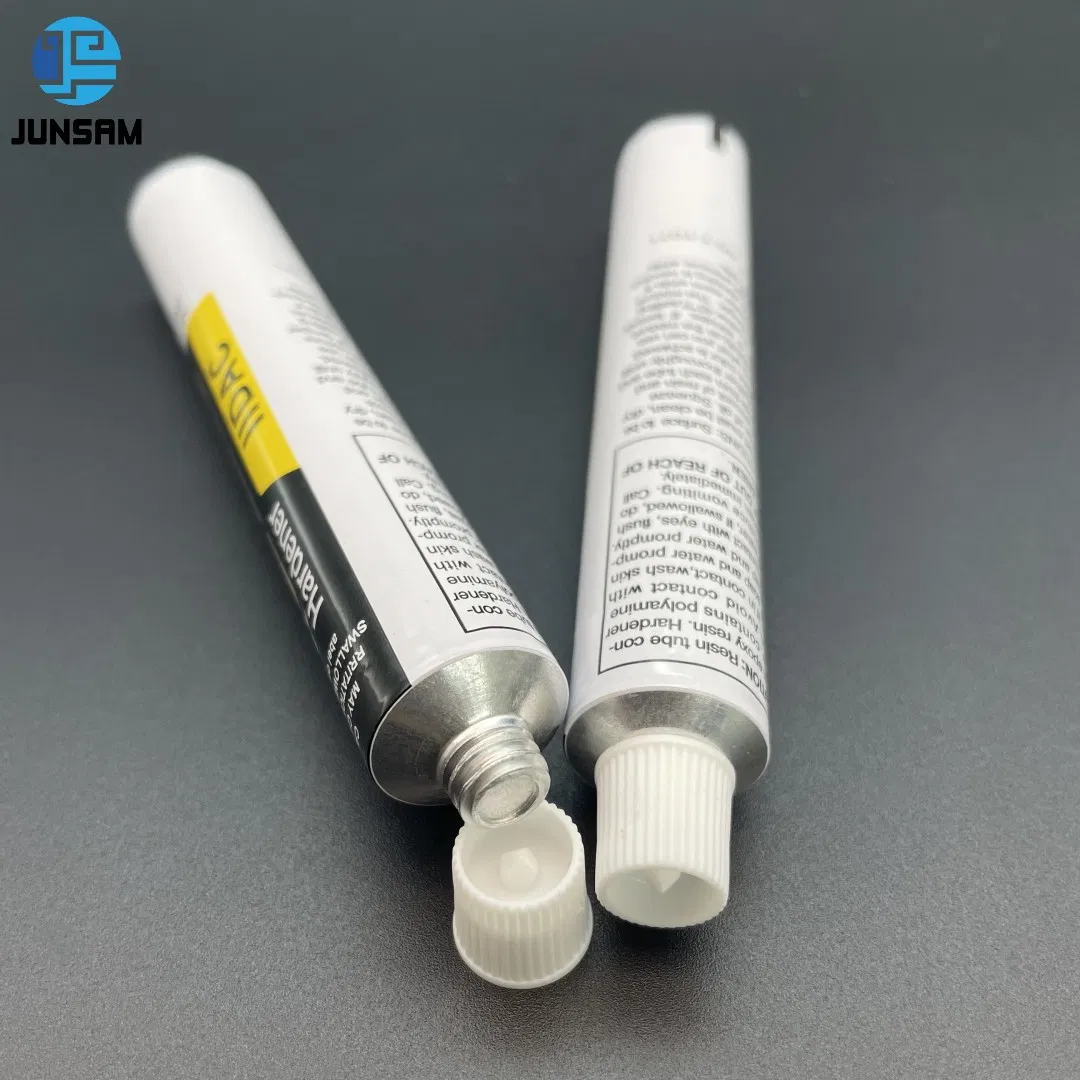

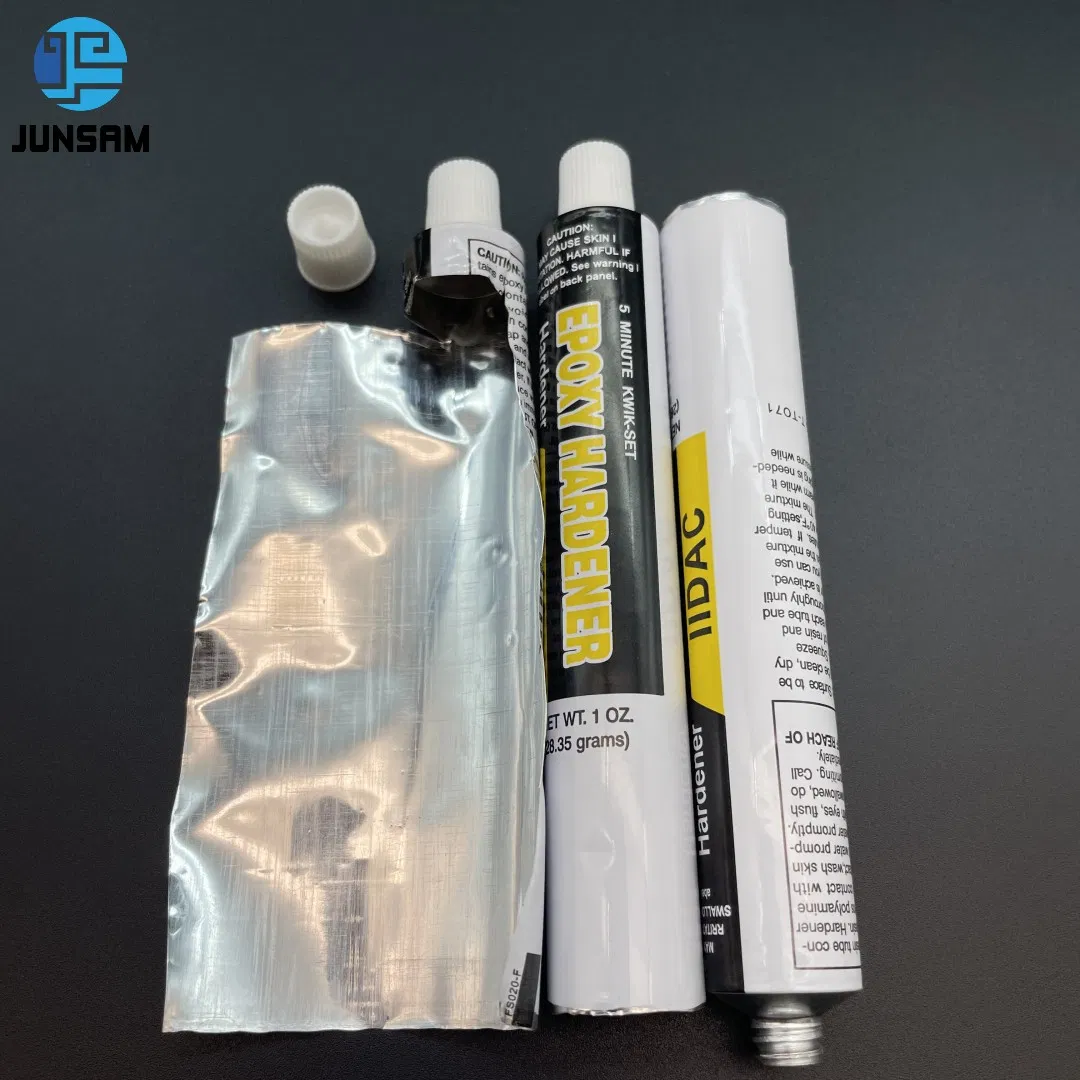

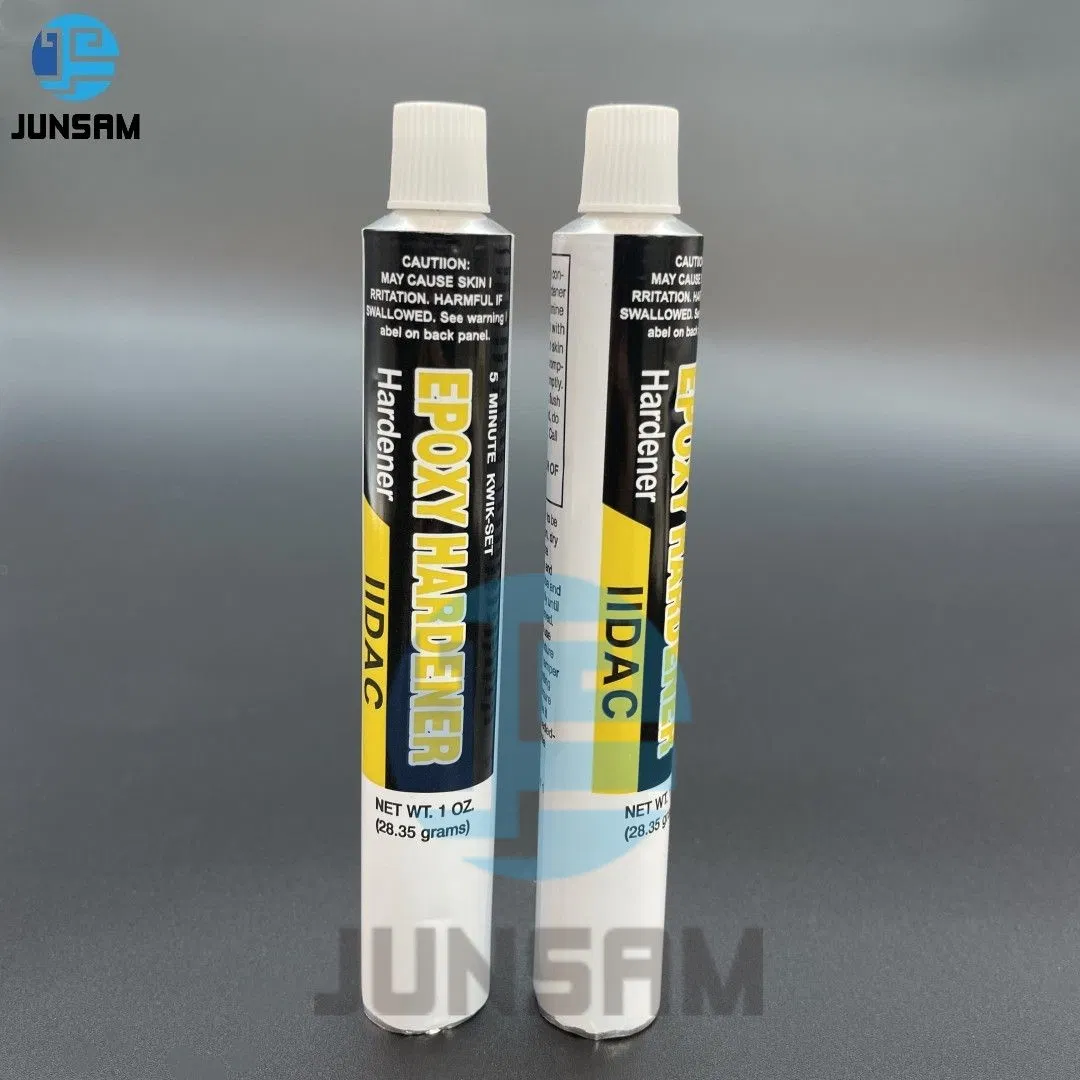

Pure Aluminum Collapsible Tube Pharmacy Packaging Pattern Shoulder Max 6 Colors Tube

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️ Basic Information
Model NO.:OEM
Material:Aluminum (Purity > 99.7%)

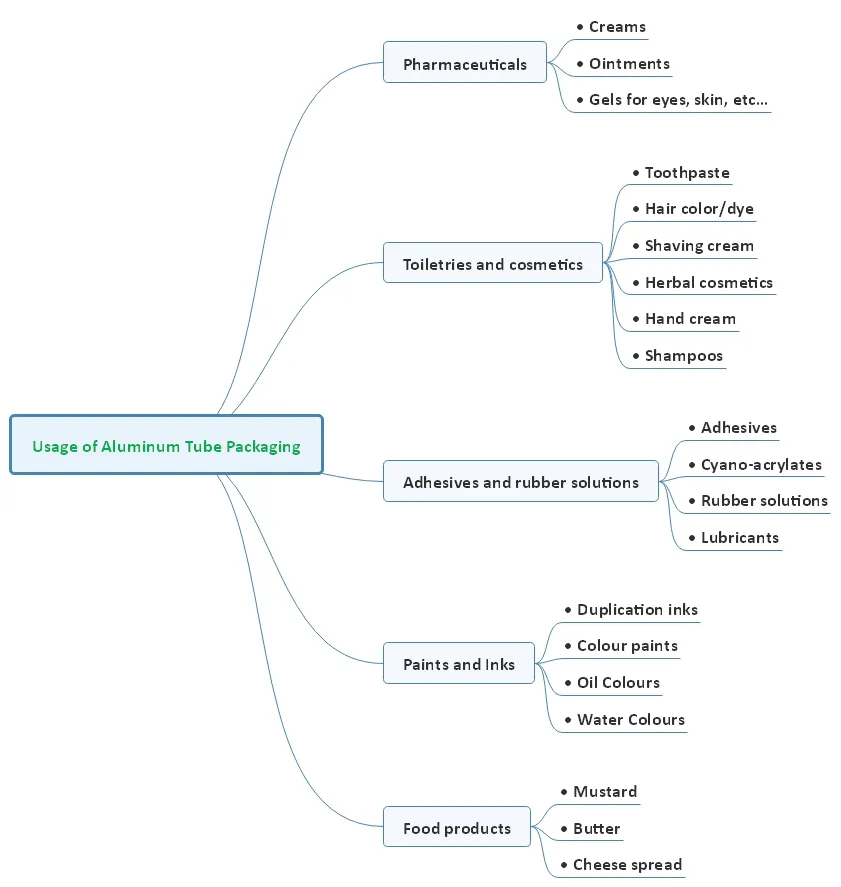

Usage:Cosmetics, Toothpaste, Food, Medicine, Chemical
Surface Treatment:Offset Printing
Color Printing:Max 6 Colors or Paper Stickers
Specification:Diameter 13.5mm to 40mm
Production Capacity:300,000 PCS Per Day
Lead Time:15 to 20 Days
📷 Detailed Photos
Aluminum Tube Detail 1
Aluminum Tube Detail 2
Aluminum Tube Detail 3

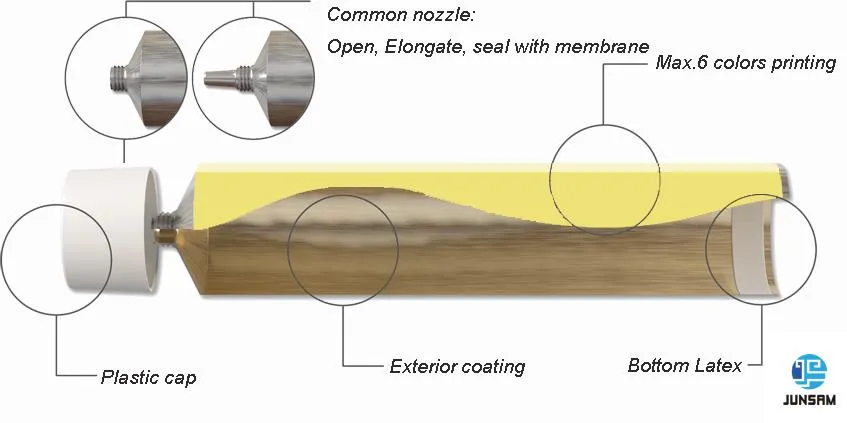

Product Feature

The Aluminum Collapsible Tube is made from aluminum slug or flake of purity 99.7%, which makes the packaging tube recyclable and environment-friendly.

It usually applied with white coating on the ground, which offers good basic for printing impression. The Bottom latex will improve the sealing which could protect the contents well.

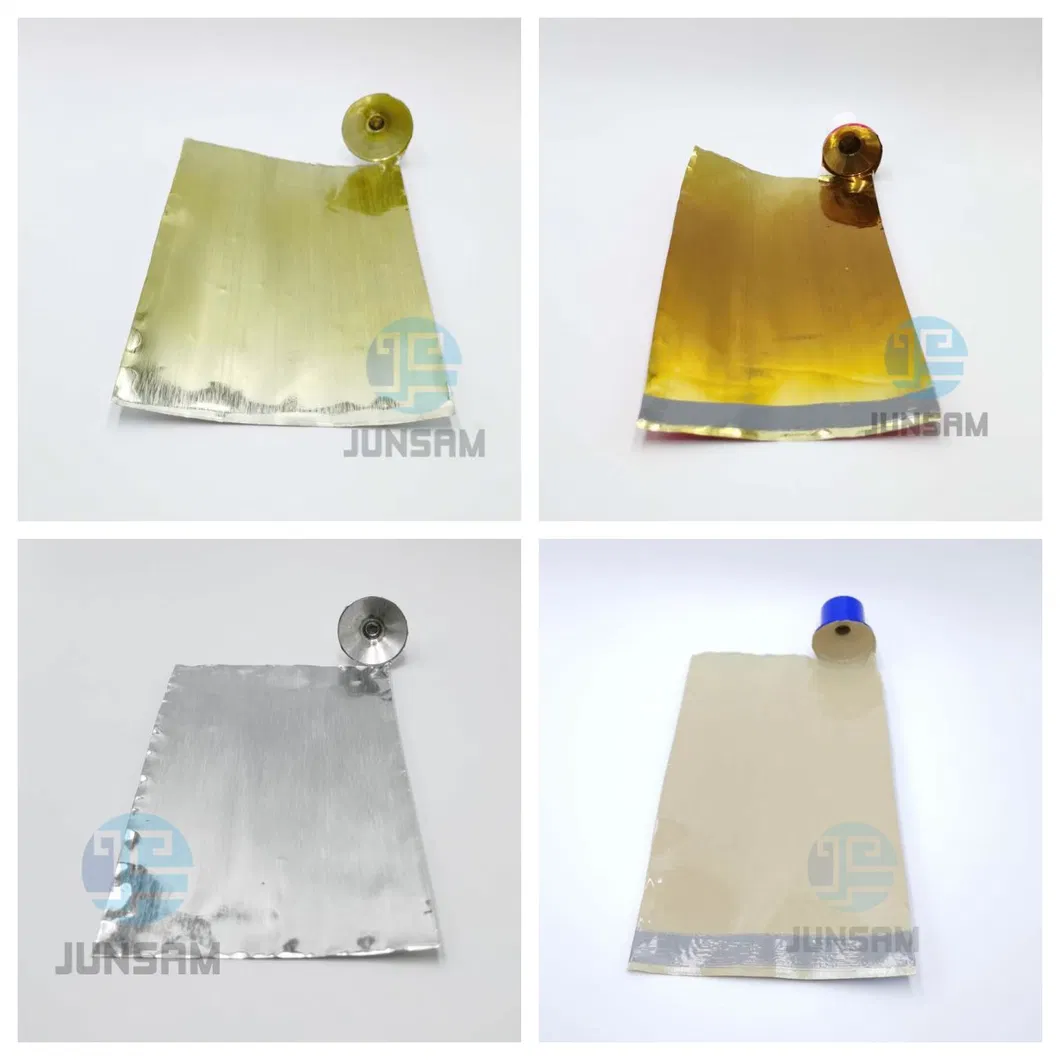

The inner lacquer is phenolic epoxy, representing transparent, yellow, or beige. The well-proceeded inner coat can efficiently block acid, alkali, moisture, and solvent, eradicating risks of reaction between the ointment and the aluminum.

Products easily affected by oxygen and moisture will extend shelf life in these tubes. Inner wall spraying is essential for hair colorant products.

Inner Lacquer Detail
📊 Product Parameters
Feature Specifications
Diameters 13.5 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm, 35 mm, 38mm, 40mm
Thread/ Screw M7, M9, M11, M12, M15, M16

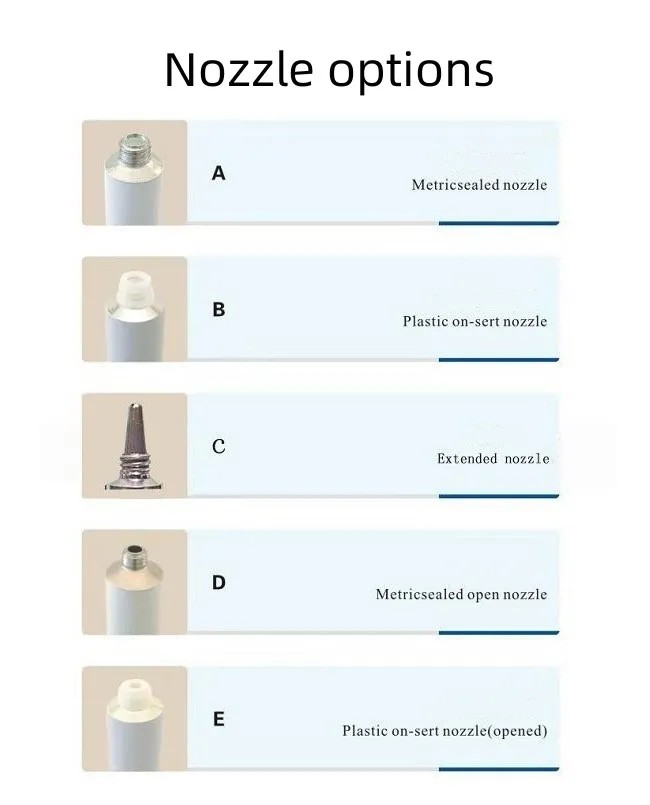

Nozzle Types Membrane-sealed, open end, extended nozzle, long nozzle, nasal tips, ophthalmic tips
Shoulder Type Polished, blank, coating, printing, pattern
Internal Coating High-quality phenolic epoxy resin (Anti-leaking & Anti-corrosion)

Regular volume and size reference:

Size Chart Diagram
Tube Dimensions
Tube Variation

Various plastic caps available:

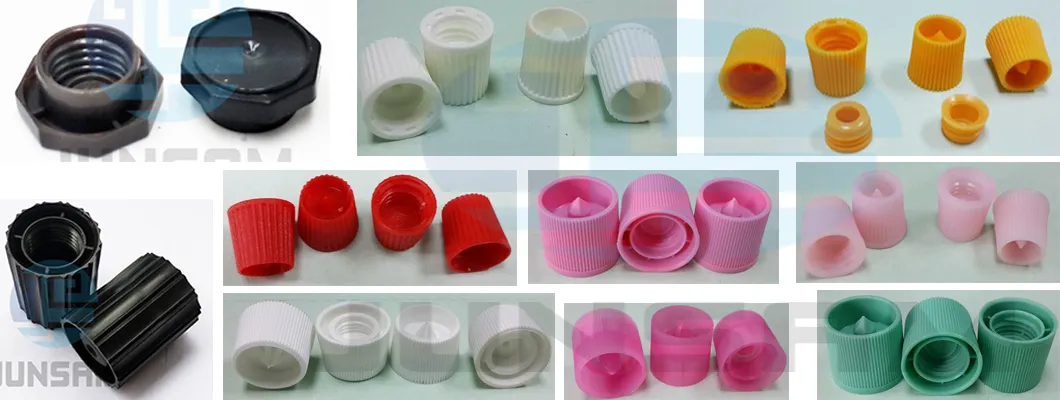

Caps 1

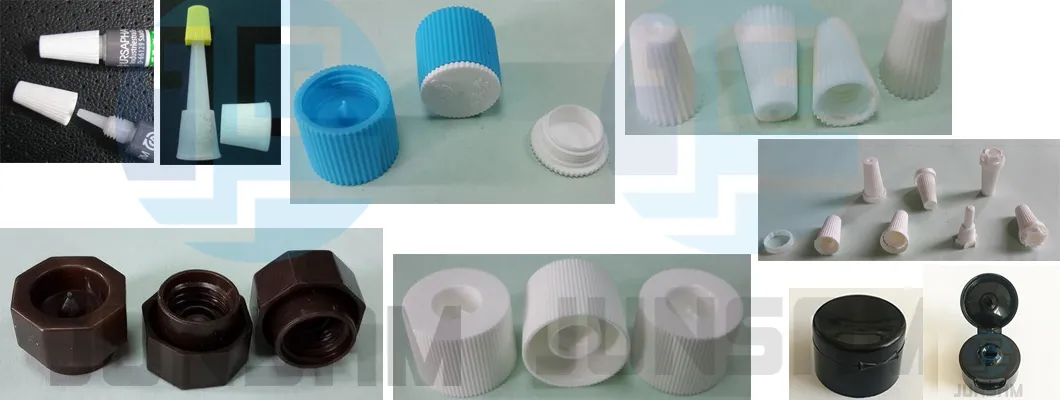

Caps 2

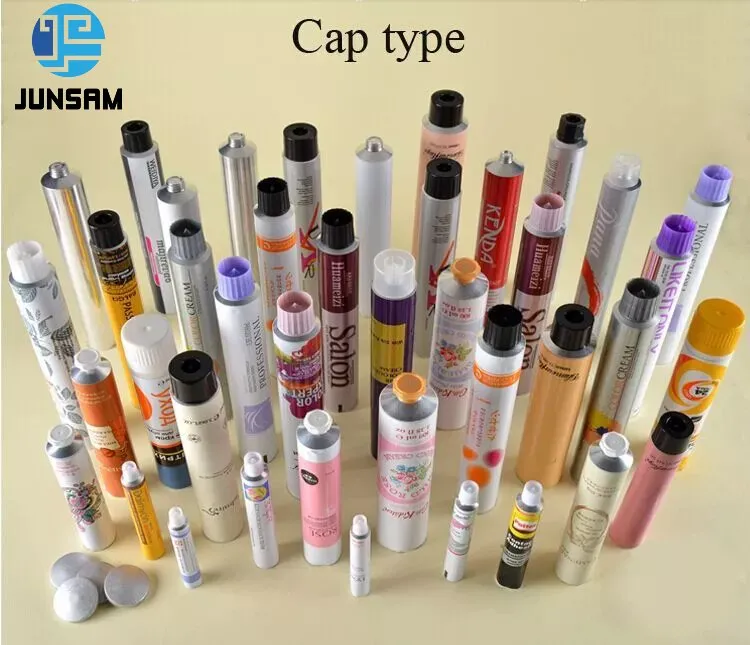

Cap Style 1
Cap Style 2
Cap Style 3
📦 Packaging & Shipping

Aluminum Collapsible Tubes are flexible and easily dented. We provide specialized packing solutions to protect against deformation.

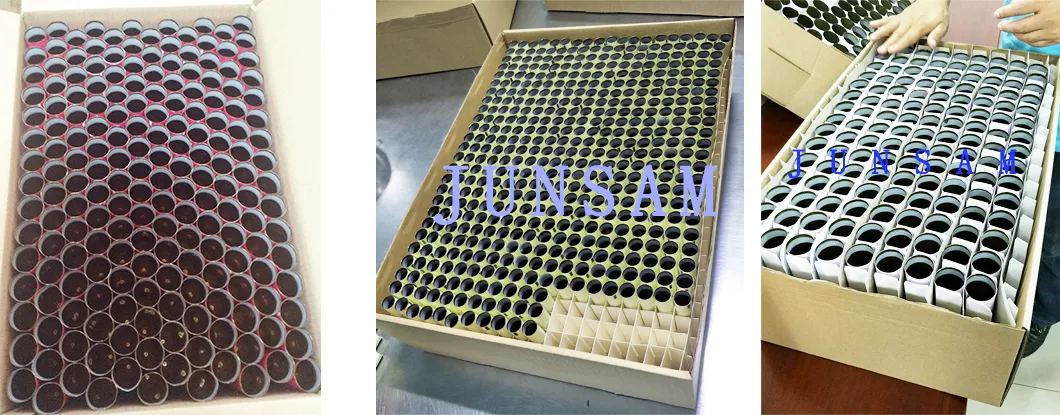

Regular Packing vs Dividers

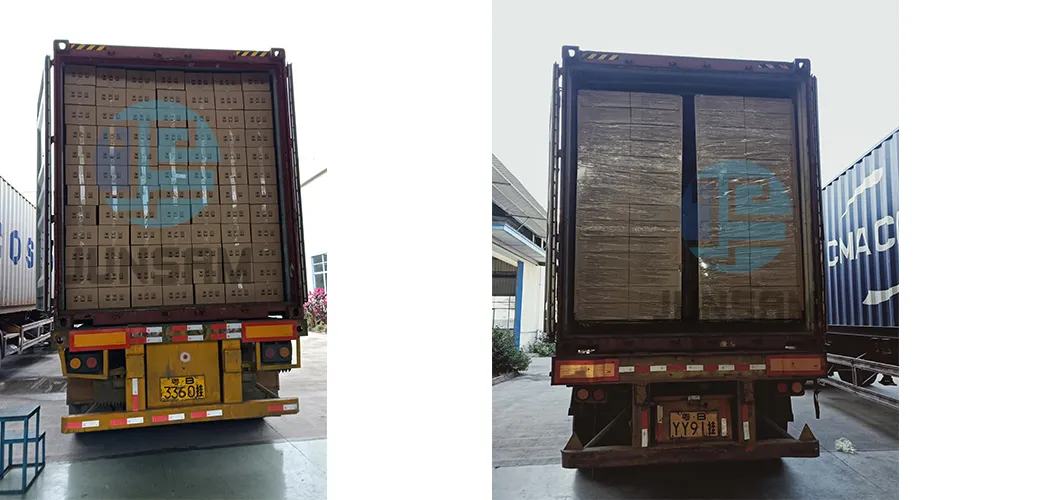

Loading with Pallets
🏭 Production & Quality Control

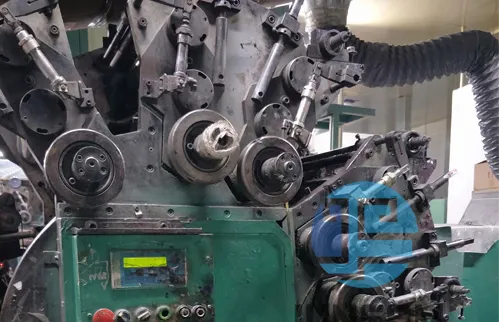

Printing Machinery
5-colors Printing Machinery: Supplying aluminum tubes at competitive prices with efficient domestic machinery.

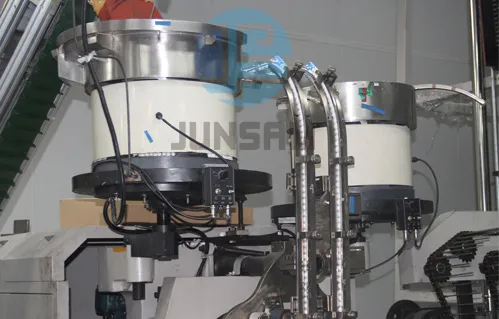

Cap Machinery
Automatic Cap Twisting: Greatly expedites lead time and saves labor costs dramatically.

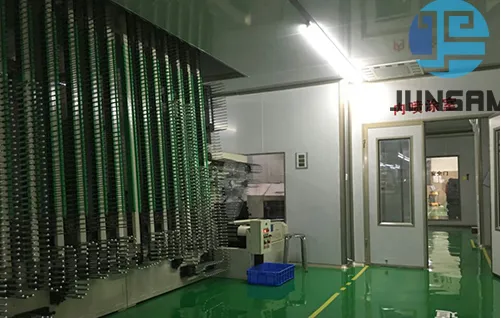

Clean Workshop
Dust-free Workshop: Specifically for pharmacy products to ensure compliance with medicine packaging regulations.

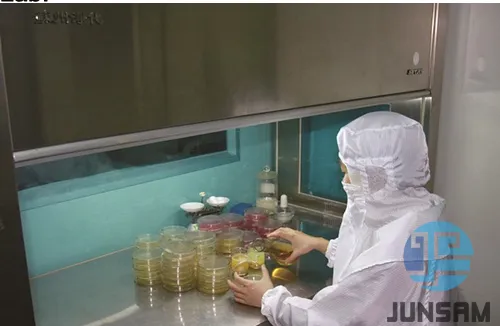

Testing Laboratory
Stringent Testing: Inner lacquer must pass stability tests to prevent chemical reactions with contents.
Our Advantages
  • 10+ years experience in the production and exportation of aluminum collapsible tubes.
  • Engineers and technical staff with over 15 years of industry expertise.
  • Strict quality inspection at every step from R&D to final production.
  • 100% inspection before delivery and 24-hour online support.
  • Global market presence: USA, Japan, Mexico, Russia, South Africa, and more.
🌐 Global Presence

Participation in international shows including Cosme Tech Show (Japan) and EBS Show (Mexico).

Exhibition History
Frequently Asked Questions
1. What is the MOQ for the aluminum packaging tubes?
Our MOQ is generally 50,000 pieces per design. However, for customers with various SKUs, we can consolidate to 30,000 pieces per artwork.
2. What is your standard lead time?
It generally takes 15 to 20 days. This may be shorter during the slow season and longer during peak production periods.
3. Can we request samples before ordering?
Storage samples are free. Customized samples with your artwork will require a mold fee and take approximately 7 days to deliver.
4. What is the process for a new product launch?
We provide quotes based on your dimensions, send free samples for evaluation/testing, and produce customized samples once artwork is provided for final approval.
5. What are your payment terms?
Normally 30% deposit before production and 70% balance paid by T/T before shipment. Terms are negotiable for long-term partners with good credit.
6. What diameter range do you offer?
Our manufacturing capabilities cover a diameter range from 13.5 mm up to 40 mm.
