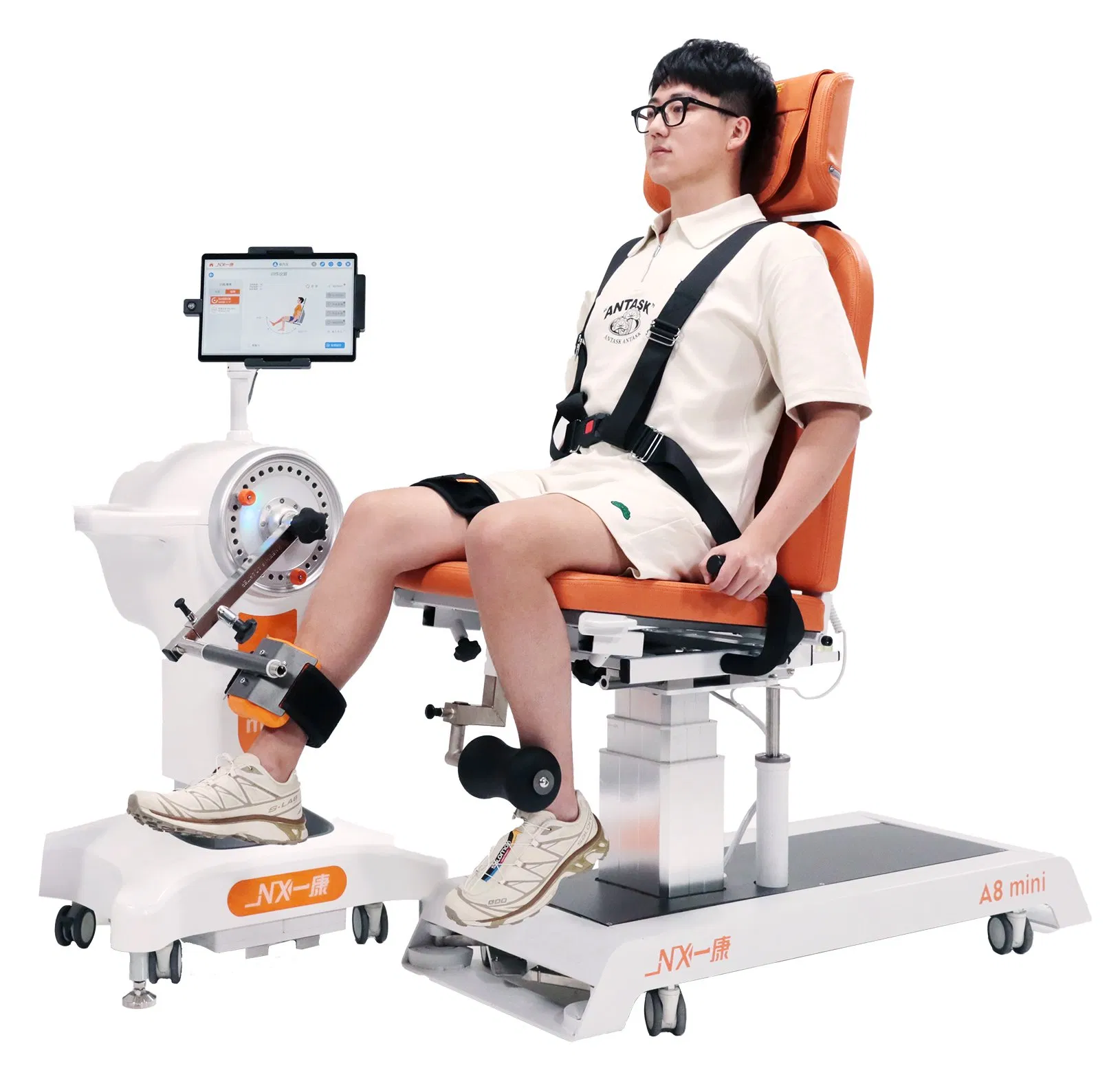

Yeecon Portable Isokinetic A8mini Physical Exercise Bedside Rehabilitation Equipment

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
A8mini
Theory
Isokinetic Training
Certification
ISO13485, CB
LCD Display
With LCD Display
Application
Fitness Center, Hospital, Rehab Centers
Training Joints
Shoulder, Elbow, Wrist, Hip, Knee, Ankle
Training Modes
22
Peak Torque
700 Nm
Operation System
Window 10
Error Precision
0.1%

Product Description

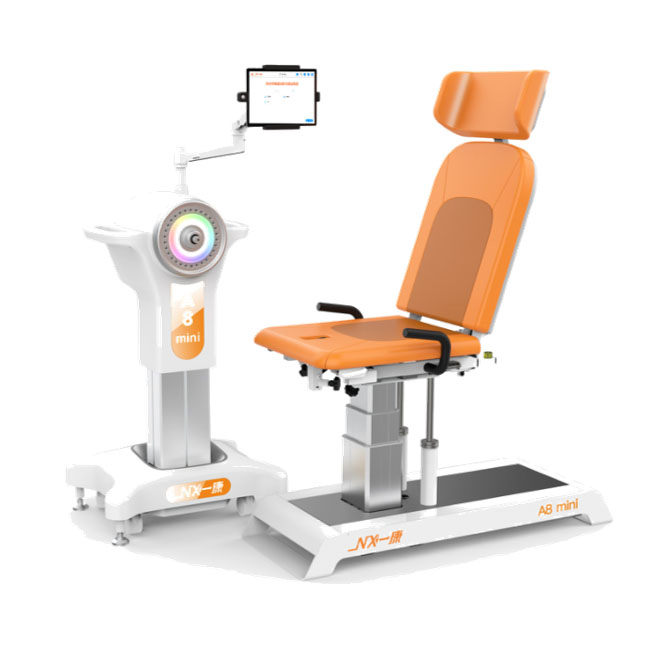

Isokinetic Training Equipment A8mini

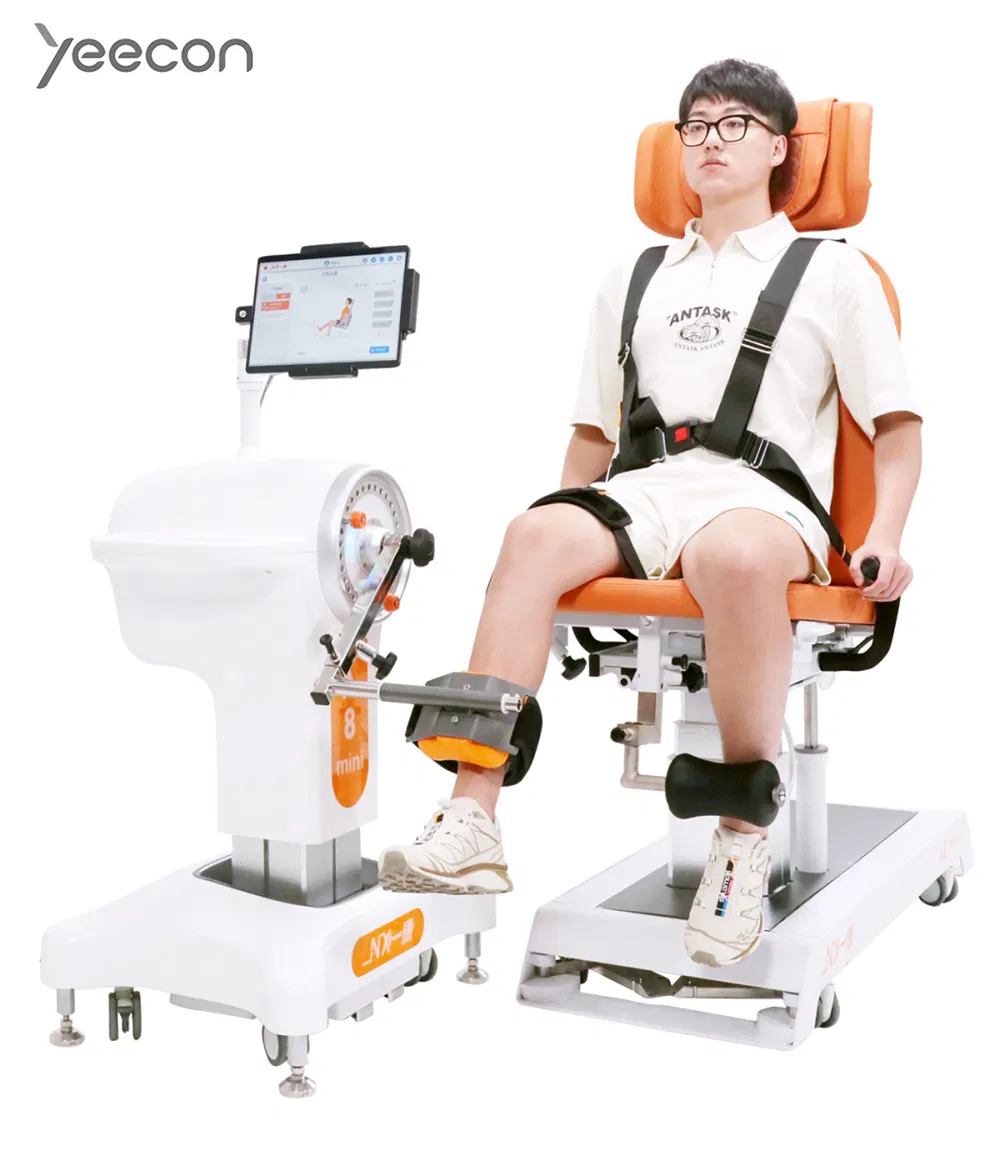

Isokinetic A8mini

The equipment adopts advanced dynamic impedance control technology and integrates multiple functions in one machine, realizing five training modes: isokinetic, isometric, isotonic, continuous passive training, and proprioception training. It provides rehabilitation training for over 20 movements involving six major joints, including shoulder, elbow, wrist, hip, knee, and ankle.

Technical Specifications

Product NameIsokinetic Strength Testing and Training System
ModelA8mini
ApplicationFitness Centers, Gyms, Hospitals, Rehabilitation Centers
VoltageA.C. 230V/50Hz
Power1.2k V/A
Operation SystemWindows 10
JointsShoulder, Elbow, Hip, Wrist, Knee, Ankle
Precision0.1%
Movement Modes22

Indications

Neurological disorders such as stroke or brain injury, incomplete spinal cord injury, spine bifid, brachial plexus injury, as well as fractures, early postoperative recovery, local nerve disorders, multiple sclerosis, amyotrophic lateral sclerosis, Duchenne muscular dystrophy, and spinal muscular atrophy.

Rehabilitation Indications

Core Features

1
Full-Cycle Service: Provides five training modes: isokinetic, isometric, isotonic, continuous passive training, and proprioception training.
2
Mobile Terminal: Bedside rehabilitation isokinetic robot suitable for small spaces and movable in different scenarios, conducive to early rehabilitation.
3
Multi-Stage Suitability: Suitable for early, mid, and late-stage neurological rehabilitation.
4
Comprehensive Joint Fittings: Includes seven joint fittings for over 20 motion exercises for shoulder, elbow, wrist, hip, knee, and ankle.
5
High Precision: Output shaft angular velocity as low as 0.05°/s with an accuracy of 0.1%, ensuring precise evaluation.
6
Adjustable Performance: Continuously adjustable speed and variable torque for both agonist and antagonist muscle training.

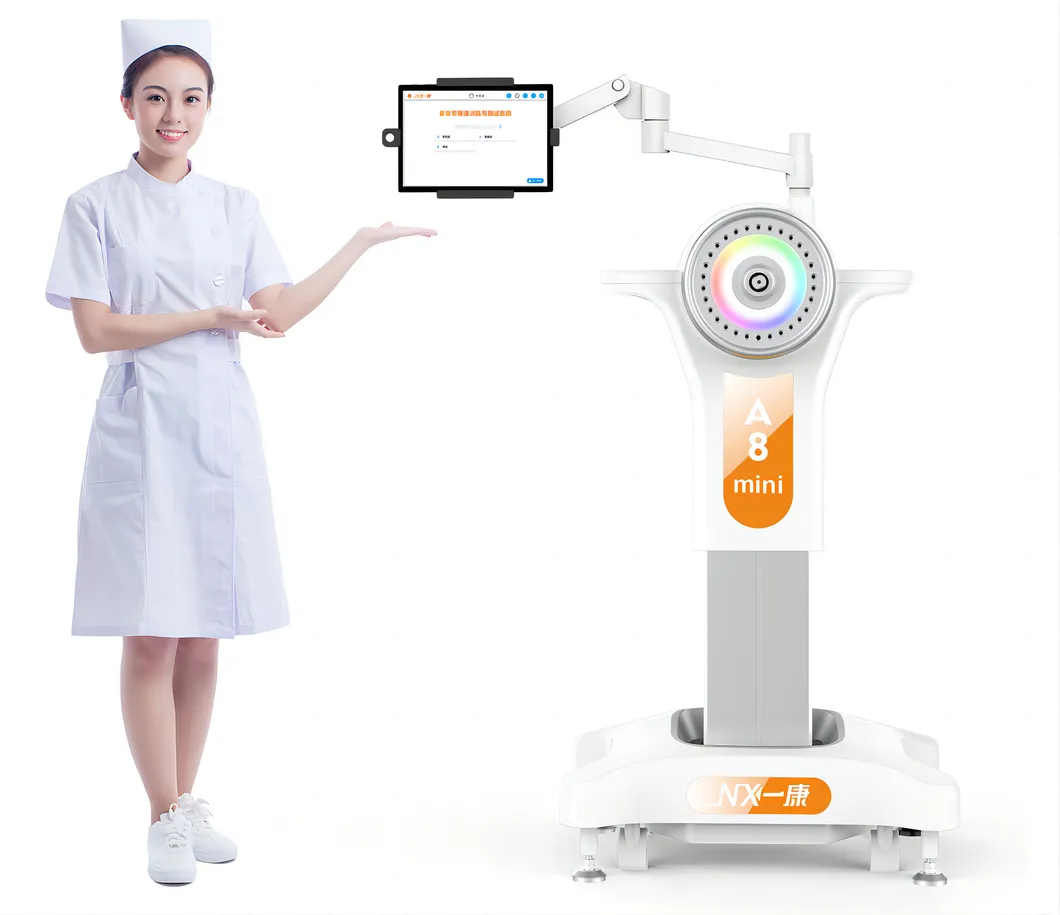

Features Display

Product Gallery

Rehabilitation Equipment Training Scenario 1 Training Scenario 2

Certifications

Certificates

Frequently Asked Questions

What joints can be trained with the A8mini?
The A8mini is designed to provide motion rehabilitation for six major joints: shoulder, elbow, wrist, hip, knee, and ankle, covering over 20 different movements.
What are the five training modes available?
The equipment features five integrated modes: isokinetic, isometric, isotonic, continuous passive training (CPM), and proprioception training.
Is this device suitable for early-stage bedside recovery?
Yes, the A8mini is a mobile terminal designed specifically for bedside rehabilitation. Its compact design allows it to be used in small spaces, making it ideal for early-stage recovery.
How precise is the evaluation and training data?
The device features a precision actuator with an accuracy of 0.1% and can operate at an angular velocity as low as 0.05°/s, ensuring highly accurate functional evaluation.
Which patients can benefit from this isokinetic equipment?
It is indicated for patients with neurological disorders (like stroke or brain injury), spinal cord injuries, fractures, and muscle-related conditions such as muscular dystrophy.
Does the system provide feedback during training?
Yes, the system includes virtual scenario interactive training and motion data feedback comparison to help track and improve the patient's muscle strength recovery.
